Panel-Display Belt Scale Controller — Interface format: Panel display with on-screen menu; application fit confirmed during quotation.
Belt Scales · Buyer selection route

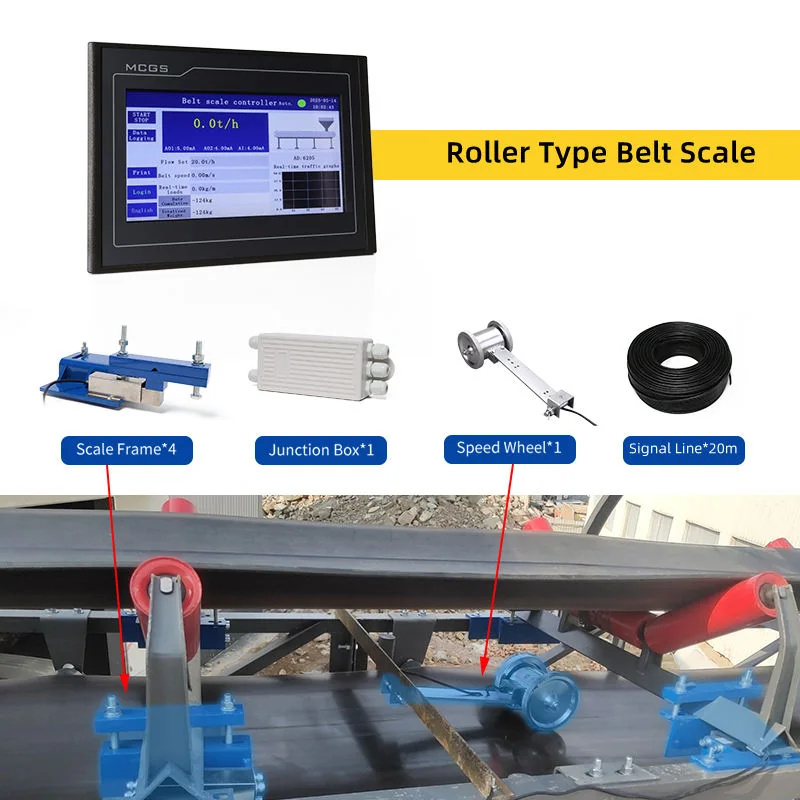

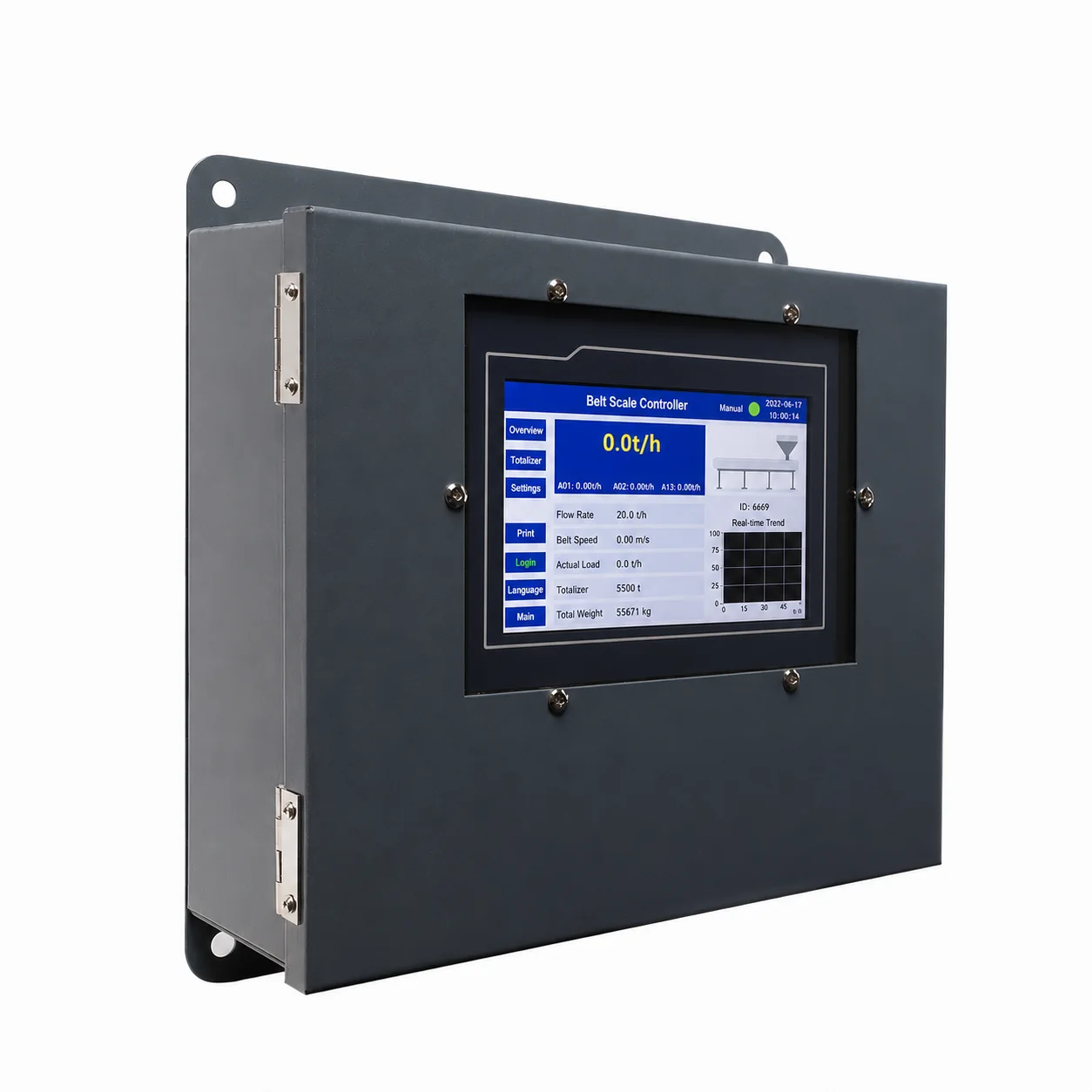

Panel-display controller route for a continuous conveyor belt scale, with statistics and data-management screens visible in the product image.
Capacity and option guidance
Application route
Operating workflow
Selection checkpoint
| Parameter | Specification |
|---|---|
| Interface format | Panel display with on-screen menu |
| Visible interface route | Statistics and data-management screens |

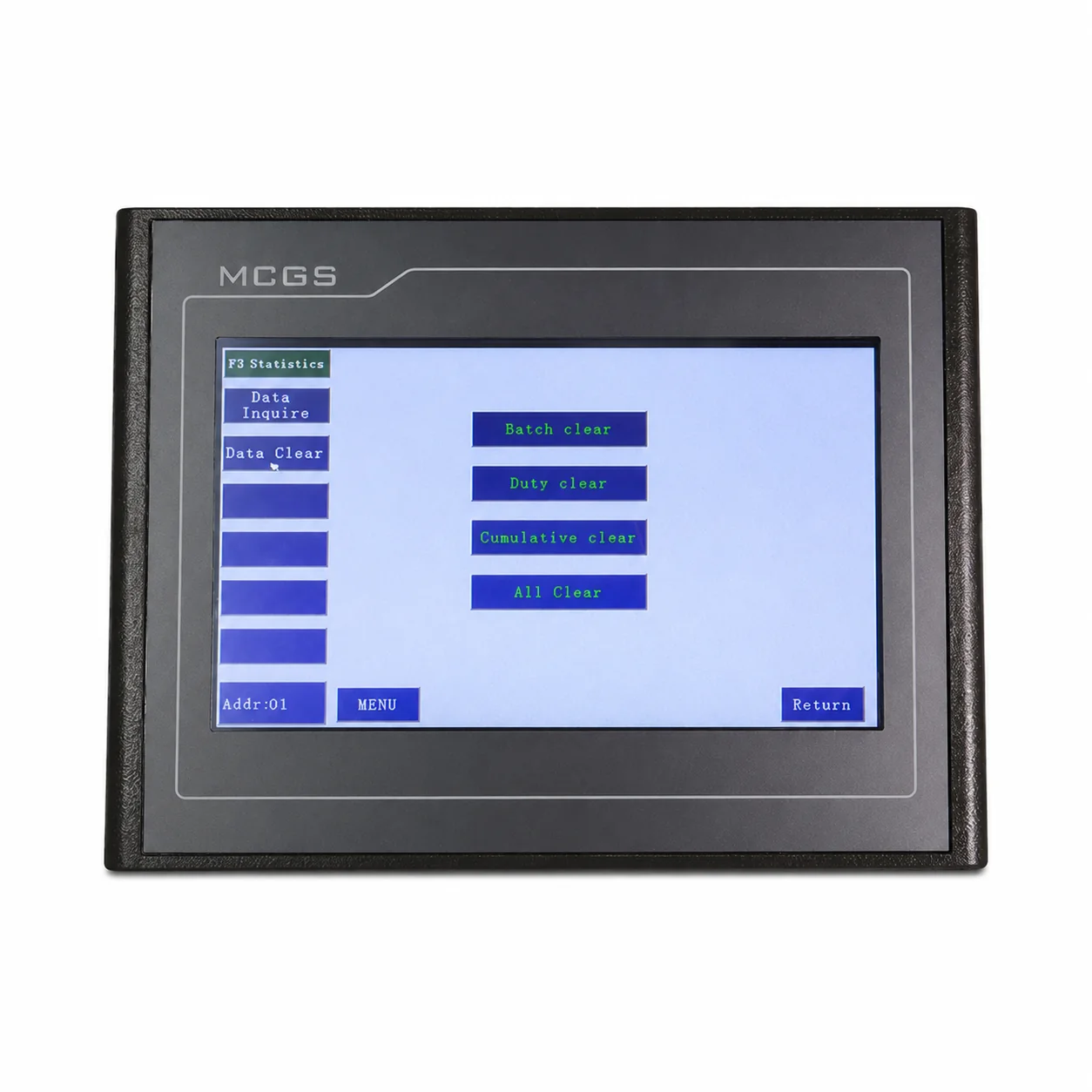

The product image shows a panel-format controller interface with statistics, data inquiry and data-clear menu routes.
Confirm sensor inputs, calculation functions, outputs, communication, enclosure, power and data retention for the exact model.
Compare Panel-Display Belt Scale Controller as panel-display belt scale controller for a surveyed conveyor weighing or control task.
What distinguishes this product: Panel-Display Belt Scale Controller lists Interface format: Panel display with on-screen menu; Visible interface route: Statistics and data-management screens.
The controller does not establish the complete weigh frame, idlers, speed sensing, conveyor condition or installed result.
Use this checklist to prepare the equipment and application information needed to match Panel-Display Belt Scale Controller to your project.
Product-specific focus: the industrial conveyor survey, mechanical integration and site verification plan.
| Selection checkpoint | Information to confirm before order |
|---|---|
| Primary application data | Purpose: monitoring, inventory, control or trade |
| Mechanical compatibility | Material, density, particle size and environment |
| Load and operating envelope | Minimum, normal and maximum flow |
| Measurement workflow | Belt width, speed, incline and idler geometry |
| Site and integration conditions | Installation straight length and interference points |
| Verification and responsibility | Calibration method, outputs, PLC/DCS and responsibility |
