LCD Display Continuous Conveyor Conveyor Belt Scale Feeder Weigher Controller for Coal Mine with OEM Support — B2B BST100-B21 continuous conveyor belt-scale controller selection; exact model and application fit confirmed before quotation.
Belt Scales · Configuration reviewed before quotation

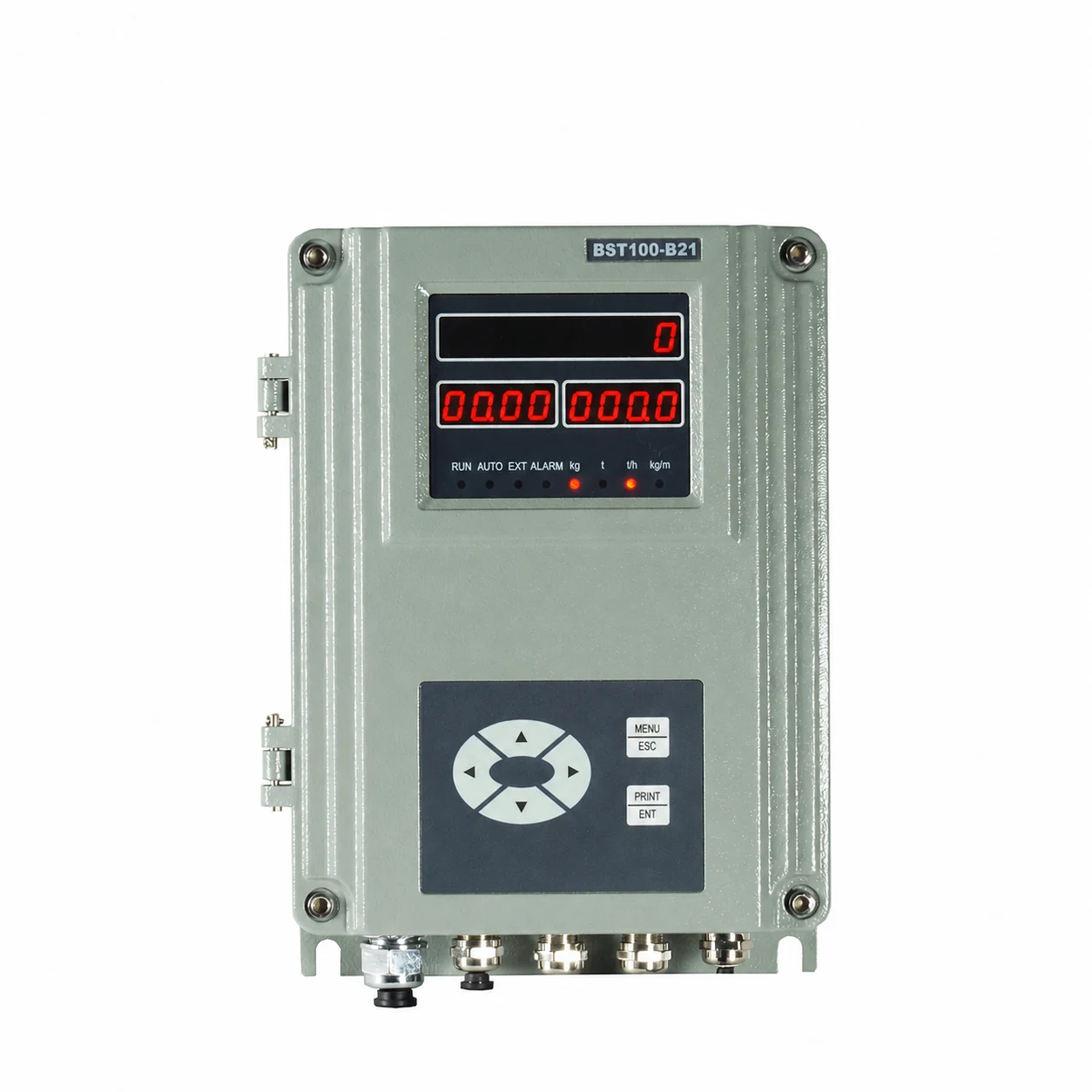

This BST100-B21 record is for continuous conveyor weighing and weigh-feeder control where the project needs an LCD operator interface and serial integration. The captured configuration lists AC220V power, an IP65 front panel, up to eight load-cell connections, three digital inputs, four relay outputs and RS232/RS485 options; confirm the exact model and test conditions before quotation.
Capacity and option guidance
Application route
Operating workflow
Model confirmation
| Parameter | Specification |
|---|---|
| Max connect | 8loadcells |
| Open Swith Input | 3DI |
| Open Repay Output | 4DO |
| Protection level of front panel | IP65 |
| Accuracy Grade | 0.5 |
| Accuracy of Flow Control | 0.5%~1.0% |
| COM1 | optional RS232/RS485 |
| COM2 | RS232 |
| Power Supply | AC220V |
Use this controller route when the buyer needs live conveyor-weight information, flow handling and accumulated process data for a coal or other bulk-material line.
Compare the required load-cell arrangement, belt-speed input, control outputs and host-system data before treating another belt indicator as equivalent to BST100-B21.
For quotation, provide the conveyor geometry, material, flow range, belt speed, calibration method and PLC/DCS interface. Published accuracy fields remain conditional on installation and the agreed verification procedure.
1 reviewed configuration is organized under this model page. Compare each configuration title, technical fields and approved imagery before confirming the exact quotation.
Configuration title: LCD Display Continuous Conveyor Conveyor Belt Scale Feeder Weigher Controller for Coal Mine with OEM Support
| Parameter | Reviewed value |
|---|---|
| Max connect | 8loadcells |
| Open Swith Input | 3DI |
| Open Repay Output | 4DO |
| Protection level of front panel | IP65 |
| Accuracy Grade | 0.5 |
| Accuracy of Flow Control | 0.5%~1.0% |
| COM1 | optional RS232/RS485 |
| COM2 | RS232 |
| Power Supply | AC220V |
3 approved images represented in the model gallery.
Use this checklist when requesting the current datasheet and quotation for LCD Display Continuous Conveyor Conveyor Belt Scale Feeder Weigher Controller for Coal Mine with OEM Support. It records the information that must be confirmed; it does not substitute unverified values for the final model.
Product-specific focus: BST100-B21: Conveyor and material data, Speed-sensor and load-cell arrangement, RS232 or RS485 host interface.
| Selection checkpoint | Information to confirm before order |
|---|---|
| Primary application data | Purpose: monitoring, inventory, control or trade |
| Mechanical compatibility | Material, density, particle size and environment |
| Load and operating envelope | Minimum, normal and maximum flow |
| Measurement workflow | Belt width, speed, incline and idler geometry |
| Site and integration conditions | Installation straight length and interference points |
| Verification and responsibility | Calibration method, outputs, PLC/DCS and responsibility |
Continue browsing the catalog or open a quick inquiry.
View product details
Keypad controller route for a continuous conveyor belt scale, with local flow-rate, accumulated-total and belt-speed readouts visible in the product image.
View product details
Panel-display controller route for a continuous conveyor belt scale, with statistics and data-management screens visible in the product image.
![fmscales VFD Digital Display Weight Indicator Controller for Ration Packing Bag Weigh BST106-H16[A/D]](/assets/products/catalog-20260824/fm-rp-014/fm-rp-014-01-card-400.webp)
View product details
This product record covers the BST106-H16 configuration for VFD-assisted ration packing control for scale builders, distributors, OEMs and control-system integrators. The captured selection fields include Power Supply AC220V; Outline Size W164*H82*D188mm; Panel Cut-out Size W153*H77mm; Verification Accuracy 0.02%; confirm the exact model and defined test conditions before quotation.
View product details
The single point load cell is a project-selected weighing sensor designed for small and medium platform scales, bench scales, counting scales, price computing scales, packaging scales, and other electronic weighing equipment.
Answers cover the reviewed BST100-B21 configurations organized on this model selection route.

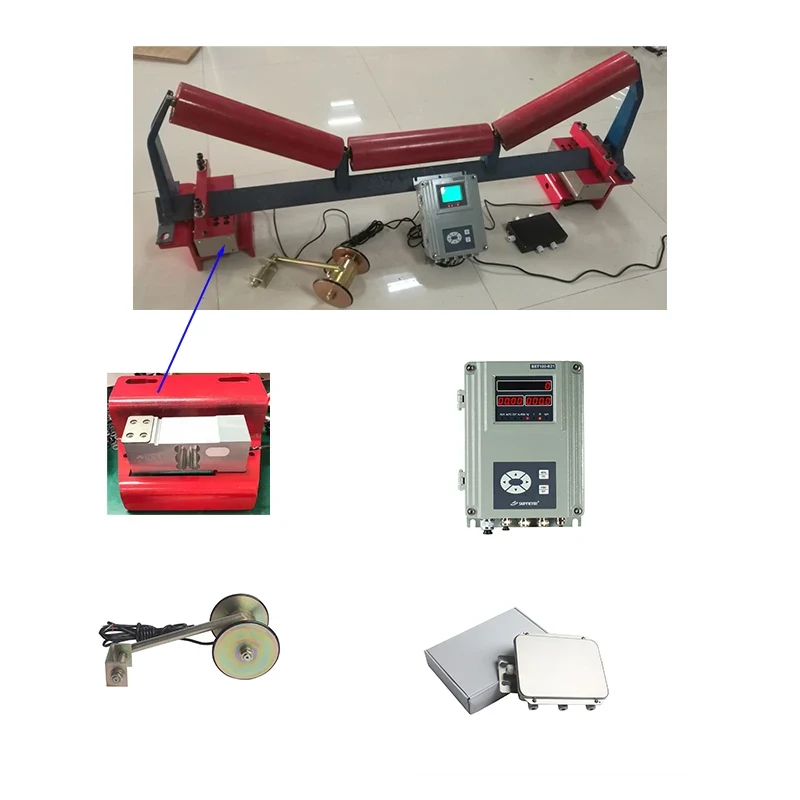

It combines measured belt load with belt movement to calculate flow and accumulated total; the conveyor, weigh frame, speed sensor and integrator form one system. This page currently lists these source-backed selection details: Max connect: 8loadcells; Open Swith Input: 3DI. The exact model still depends on BST100-B21: Conveyor and material data, Speed-sensor and load-cell arrangement, RS232 or RS485 host interface.
