Touch Screen LCD Conveyor Belt Indicator Controller with Ration Flow Feeding & Ration Weight Batch Control — B2B belt-scale controller selection with Max connect: 8 load cells; Accuracy Grade: 0.5.
Belt Scales · Buyer selection route
This touch-screen controller is listed for conveyor flow feeding and ration-weight batch control. Compare the reviewed maximum connection of 8 load cells, 3 digital inputs, 4 relay outputs and IP65 front-panel protection with the required operating sequence.
Capacity and option guidance
Application route
Operating workflow
Selection checkpoint
| Parameter | Specification |
|---|---|
| Max connect | 8 load cells |
| Open Switch Input | 3DI |
| Open Relay Output | 4DO |
| Protection level of front panel | IP65 |
| Accuracy Grade | 0.5 |
| Accuracy of Flow Control | 0.5%~1.0% |
| COM1 | Optional RS232/RS485 |
| COM2 | RS232 |
| Power Supply | AC220V |
Use the listed configuration to evaluate touch-interface ration-weight and batch control on a conveyor. Its role is defined by the application and control workflow, not by a generic controller label alone.
For comparison with another model, document the batch target, cut-off sequence, conveyor operating cycle and required relay outputs. The parameter table retains every reviewed buyer-facing field available for this record.
Before ordering, confirm batch sequence, conveyor run/stop logic, load-cell arrangement, communication ports and acceptance test. Any performance value remains conditional on the exact model, installation and agreed verification procedure.
Compare Touch flow/batch controller as flow and batch belt controller for a surveyed conveyor weighing or control task.
What distinguishes this product: Touch flow/batch controller lists Max connect: 8 load cells; Open Switch Input: 3DI.
The controller does not establish the complete weigh frame, idlers, speed sensing, conveyor condition or installed result.
Compare 1 available configuration by technical fields and product images, then confirm the option that fits your application.
Configuration: Touch Screen LCD Conveyor Belt Indicator Controller with Ration Flow Feeding & Ration Weight Batch Control
| Parameter | Current value |
|---|---|
| Max connect | 8 load cells |
| Open Switch Input | 3DI |
| Open Relay Output | 4DO |
| Protection level of front panel | IP65 |
| Accuracy Grade | 0.5 |
| Accuracy of Flow Control | 0.5%~1.0% |
| COM1 | Optional RS232/RS485 |
| COM2 | RS232 |
| Power Supply | AC220V |

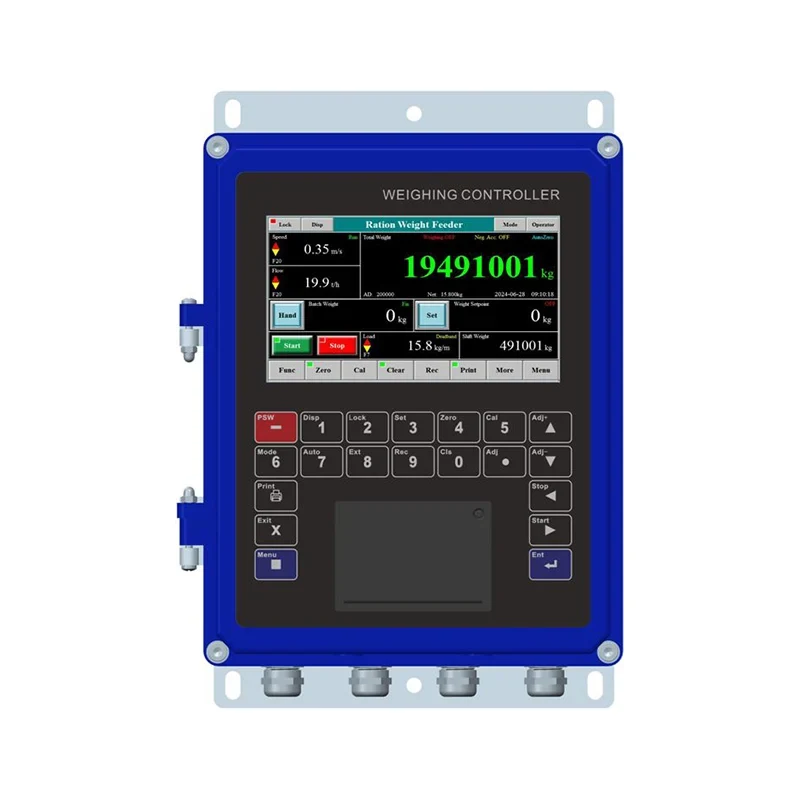

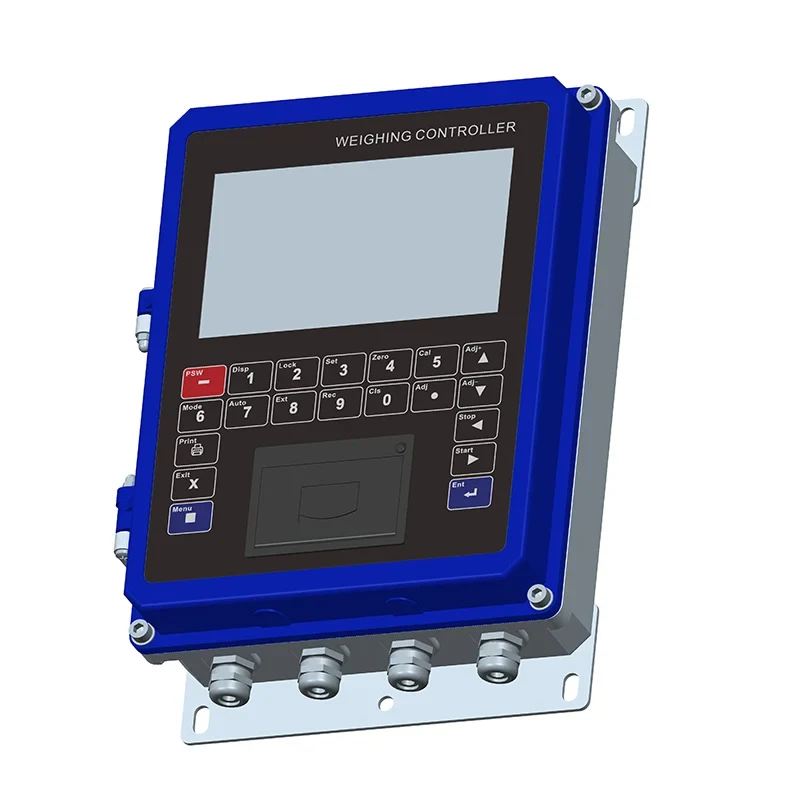

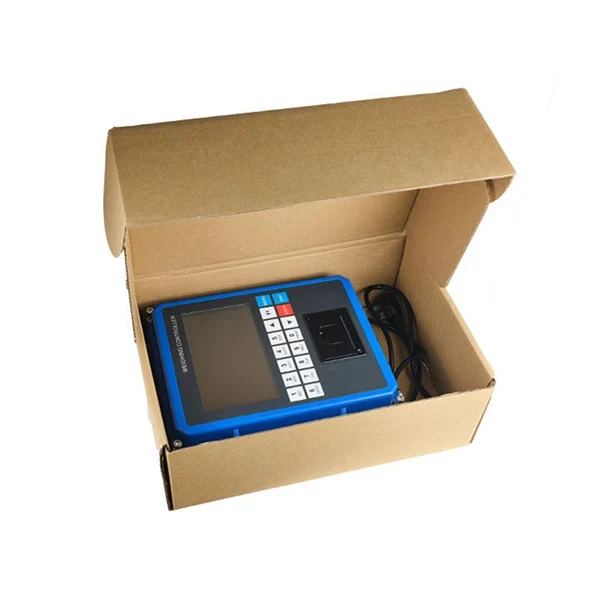

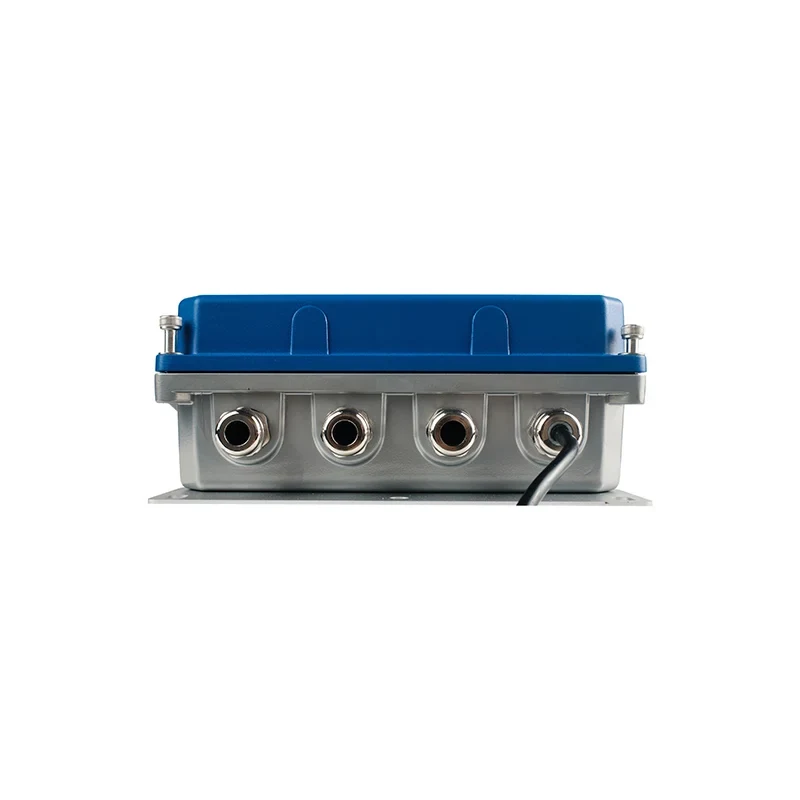

5 product images shown in the model gallery.
Use this checklist to prepare the equipment and application information needed to match Touch Screen LCD Conveyor Belt Indicator Controller with Ration Flow Feeding & Ration Weight Batch Control to your project.
Product-specific focus: Touch flow/batch controller, including Max connect: 8 load cells, and the installed operating workflow.
| Selection checkpoint | Information to confirm before order |
|---|---|
| Primary application data | Purpose: monitoring, inventory, control or trade |
| Mechanical compatibility | Material, density, particle size and environment |
| Load and operating envelope | Minimum, normal and maximum flow |
| Measurement workflow | Belt width, speed, incline and idler geometry |
| Site and integration conditions | Installation straight length and interference points |
| Verification and responsibility | Calibration method, outputs, PLC/DCS and responsibility |
